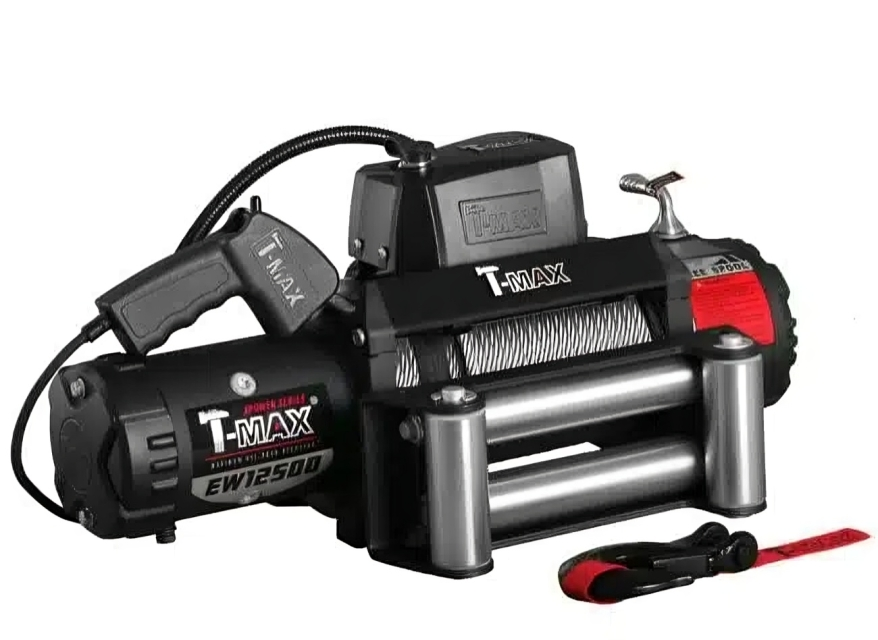

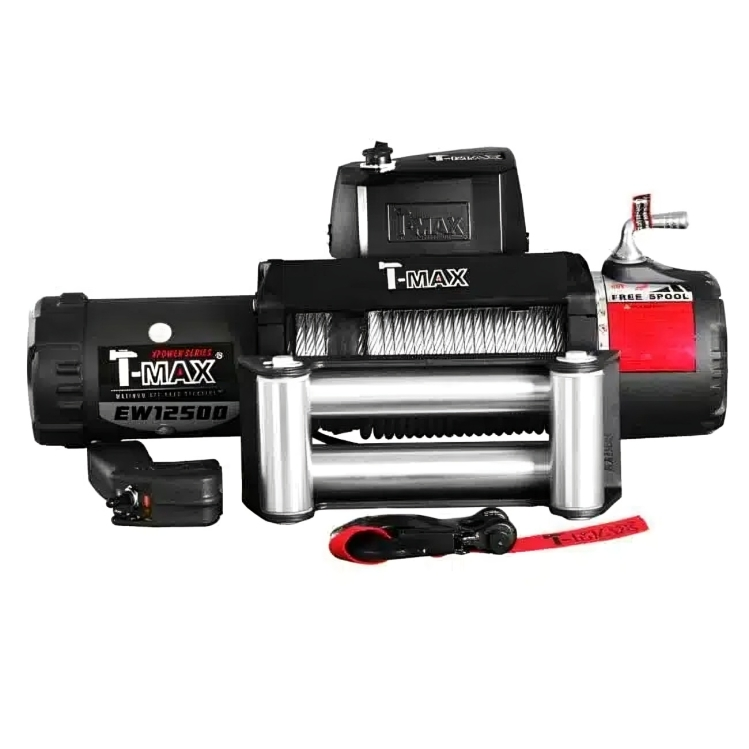

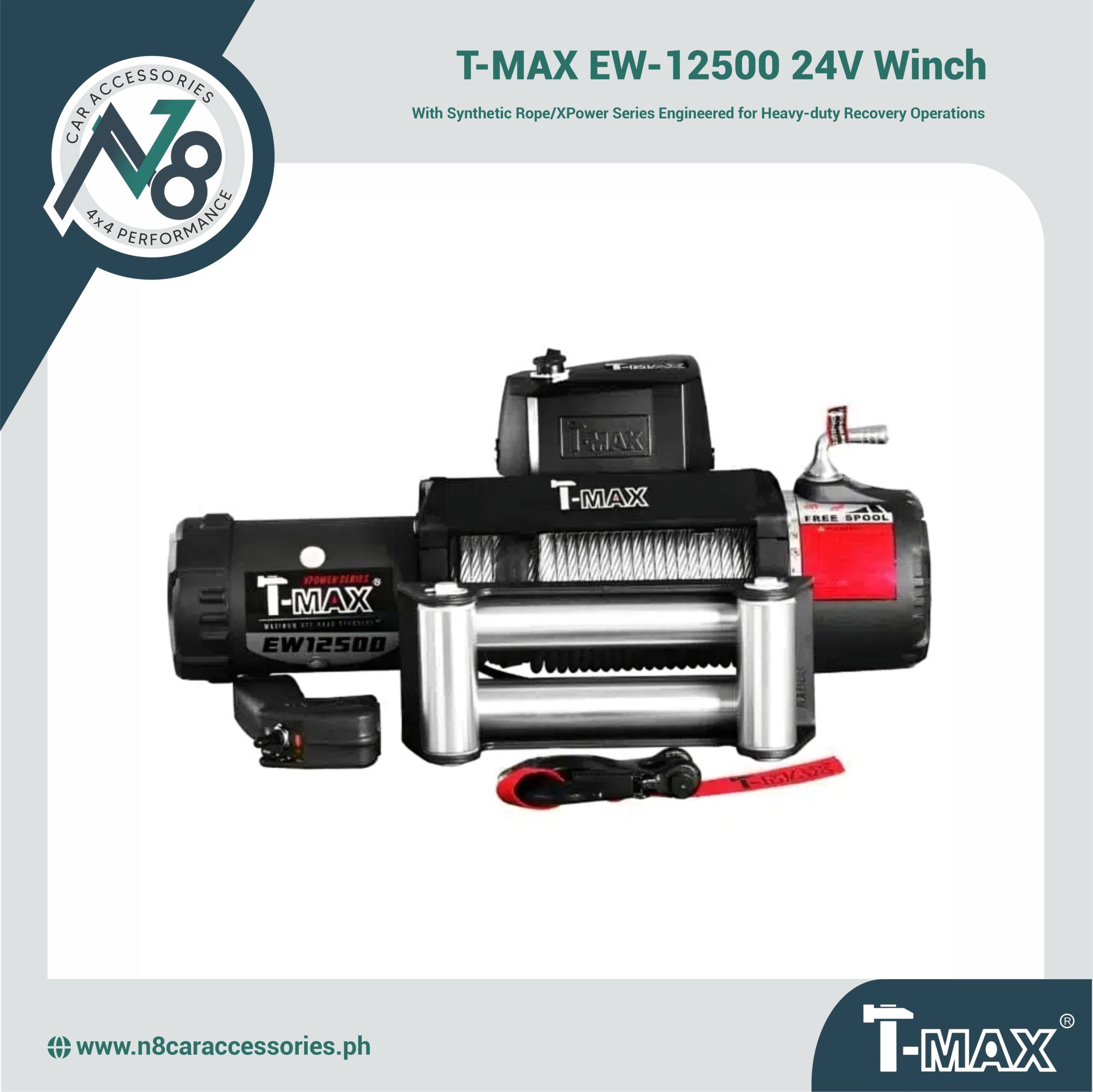

T-MAX EW-12500 24V Winch with Synthetic Rope/XPower Series

Product Description:

The T-MAX EW-12500 24V winch from the XPower Series is engineered for heavy-duty recovery operations requiring a reliable and powerful 24V system. Delivering a rated pull capacity of 12,500 lb (5,670 kg), this winch is powered by a 6.6 hp series-wound motor combined with a robust 3-stage planetary gear train. The winch comes spooled with a durable Dyneema SK-75 synthetic rope and features an aluminum hawse fairlead for reduced rope wear. Its IP67 waterproof and dustproof rating ensures optimal performance in harsh conditions, making it a perfect choice for large trucks, 4x4s, and industrial vehicles.

Product Features:

• 12,500 lb (5,670 kg) rated line pull for heavy recovery needs
• Powerful 6.6 hp motor optimized for 24V systems
• Durable synthetic rope with high strength-to-weight ratio
• IP67 waterproof and dustproof for all-weather reliability
• Smooth 3-stage planetary gear system for efficient power transfer
• Automatic in-drum braking for secure holding under load
• Sliding ring gear clutch for easy switching between free-spooling and engaged modes
• Aluminum hawse fairlead to minimize rope abrasion and corrosion
• Wired remote control with 12 ft (3.7 m) cable for safe operation
• Integrated solenoid module for simplified installation

Product Specifications:

• Rated Line Pull: 12,500 lb (5,670 kg)
• Motor Power: 6.6 hp (4.9 kW), series-wound, 24V DC
• Gear Ratio: 265:1
• Drum Dimensions: 2.52″ diameter × 8.82″ length (64 mm × 224 mm)
• Synthetic Rope: Dyneema SK-75, 7/16″ (11 mm) diameter × 89′ (27 m) length
• Mounting Bolt Pattern: 10″ × 4.5″ (254 × 114.3 mm)
• Battery Requirements: Suitable for 24V systems
• Battery Leads: 25 mm², 72″ (1.83 m) length
• Protection Rating: IP67 waterproof and dustproof
• Finish: Black powder-coated
