ALPINE UTX-M06 Add In DSP Audio Player

Product Description:

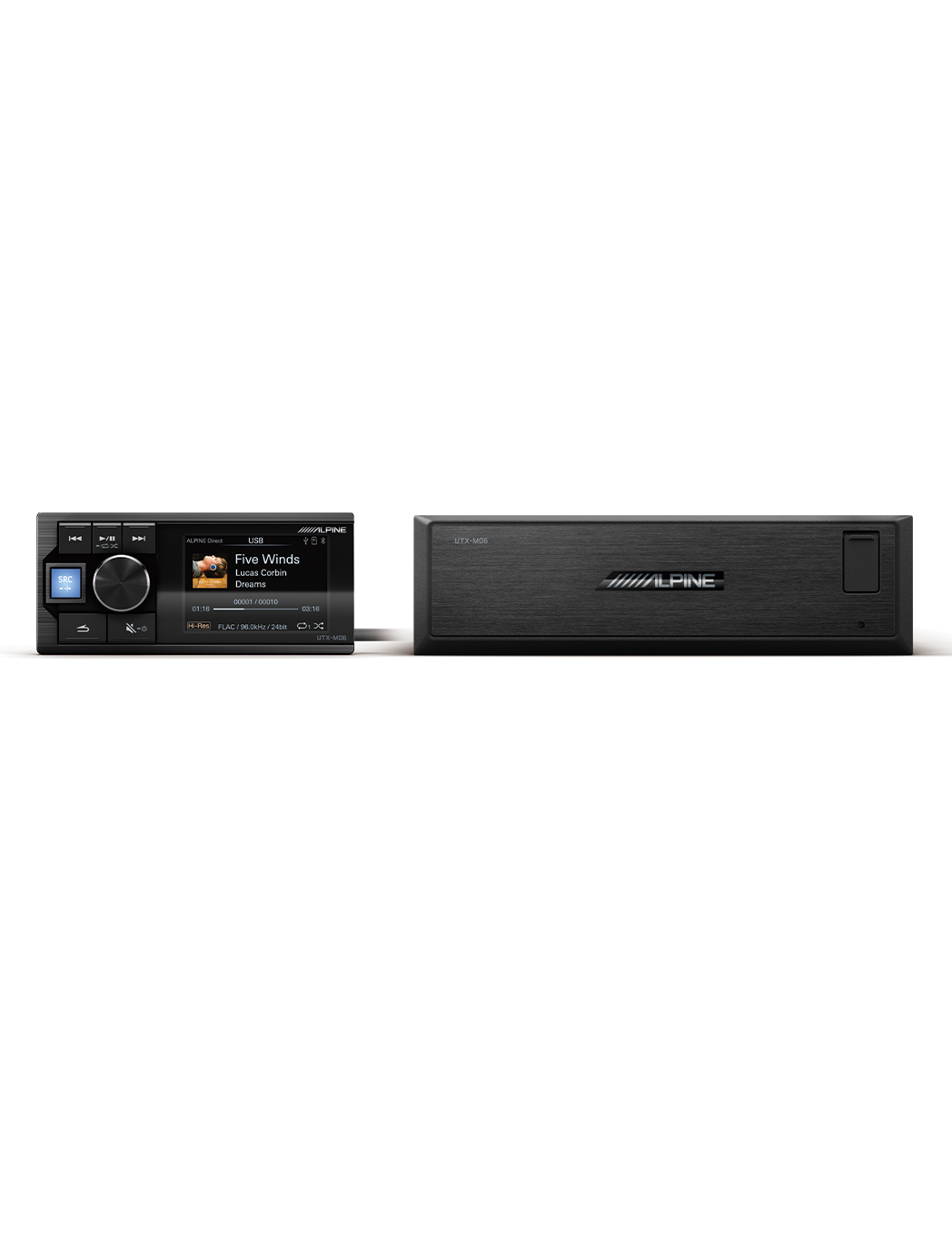

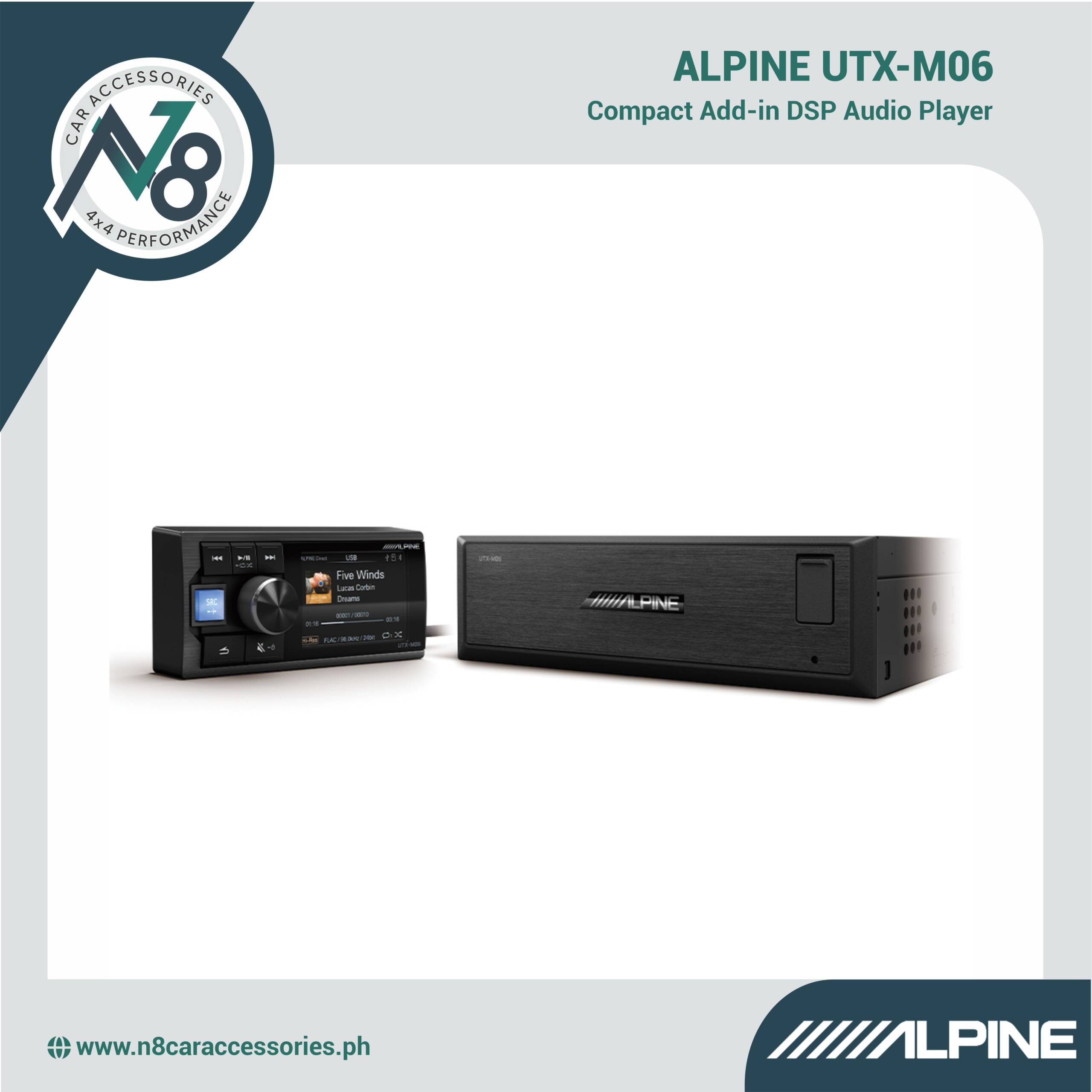

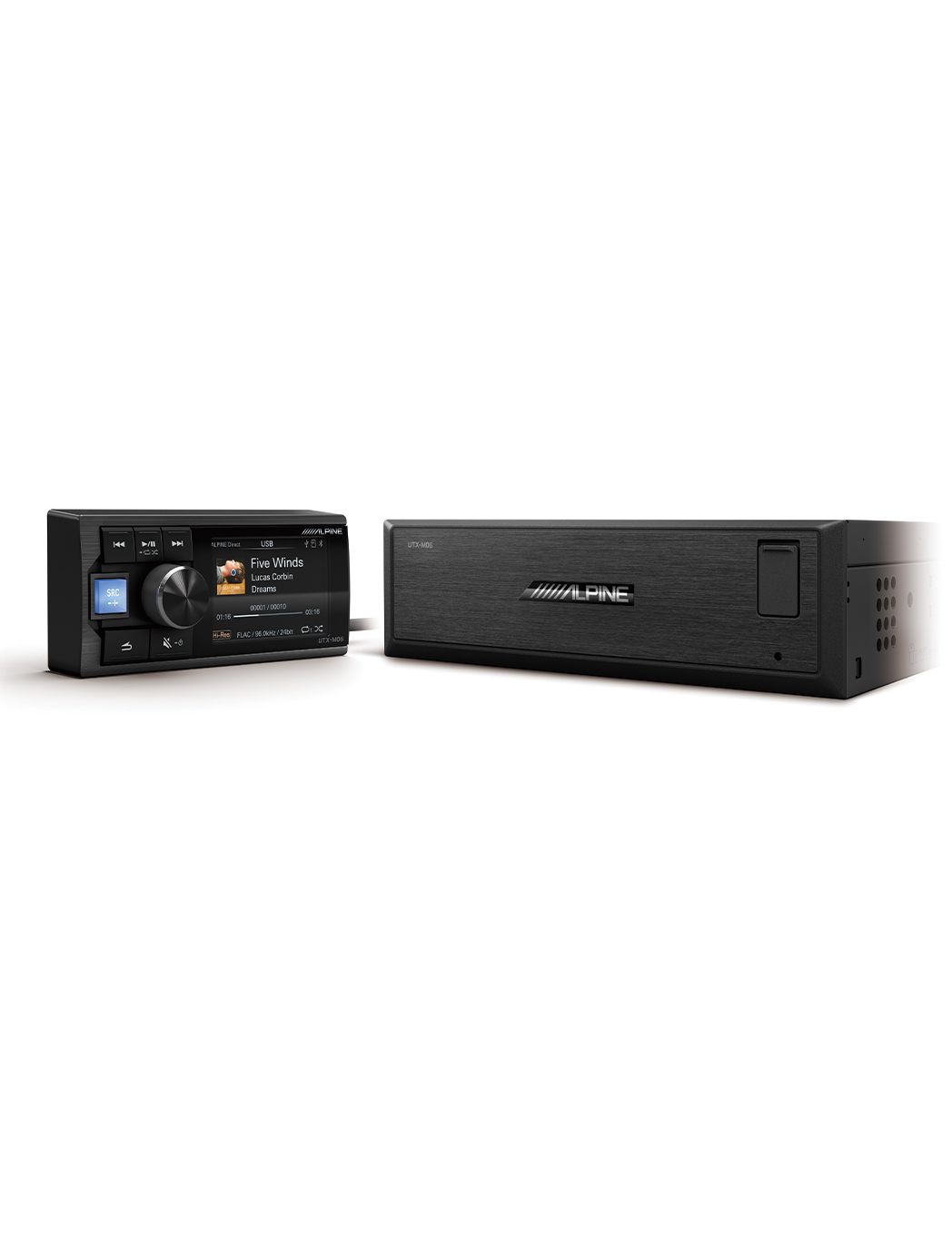

The Alpine UTX‑M06 is a compact, add‑in DSP audio player that fits seamlessly into factory stereo systems without modifying the dashboard. Featuring Alpine’s split-structure design, it installs discreetly and comes with a 2.4″ TFT controller for user-friendly access to high-resolution playback, Bluetooth streaming, and advanced tuning features. It enhances in‑car audio quality while maintaining OEM navigation and steering wheel control integration.

Product Features:

• High‑Resolution Audio Playback
  Supports PCM formats up to 96 kHz/24‑bit and popular formats like WAV, FLAC, APE, WMA, MP3, and AAC.
• Built‑In Bluetooth 4.2
  Enables wireless music streaming and hands-free calling via onboard Bluetooth connectivity.
• 15‑Band Parametric EQ & Time Correction
  Includes 15-band parametric equalizer, 6-channel time alignment, and digital crossover for precise sound tuning.
• Internal 4‑Channel Amplifier
  Offers four 25 W RMS channels for basic amplification, along with three 4 V line-level pre-outs (front, rear, sub).
• Dual USB + microSD Playback
  Front and rear USB ports support up to 128 GB each, while a rear microSD slot expands media capability.
• AUX‑In & SPDIF Output
  Provides a 3.5 mm auxiliary input and SPDIF/Optical output for flexible system expansions.
• Steering‑Wheel Control Support
  Equipped with ADC-type side control for seamless use of factory steering controls.
• Alpine DSP Integration
  Compatible with Alpine’s DSP modules—shares control and configuration through the unit’s controller interface.

Product Specifications:

• Display: 2.4″ color TFT (480×320)
• Audio Sampling Rate: Up to 96 kHz/24‑bit
• Supported Formats: WAV, APE, FLAC, WMA, MP3, AAC
• File Playback Storage: USB front/rear, microSD (max 128 GB)
• EQ: 15‑band parametric equalizer
• Time Correction: 6‑channel
• Line-Out: 3 × 4 V RCA (Front, Rear, Sub) + SPDIF/Opt
• Built-In Amp: 4 channels × 25 W RMS
• Connectivity: 2 × USB, 1 × AUX, Bluetooth 4.2, ADC steering input
